VSDISPLAY 10.4" IPS LCD Screen VS104T-003A with Resistive Touch Panel and VGA DVI LCD Controller Board

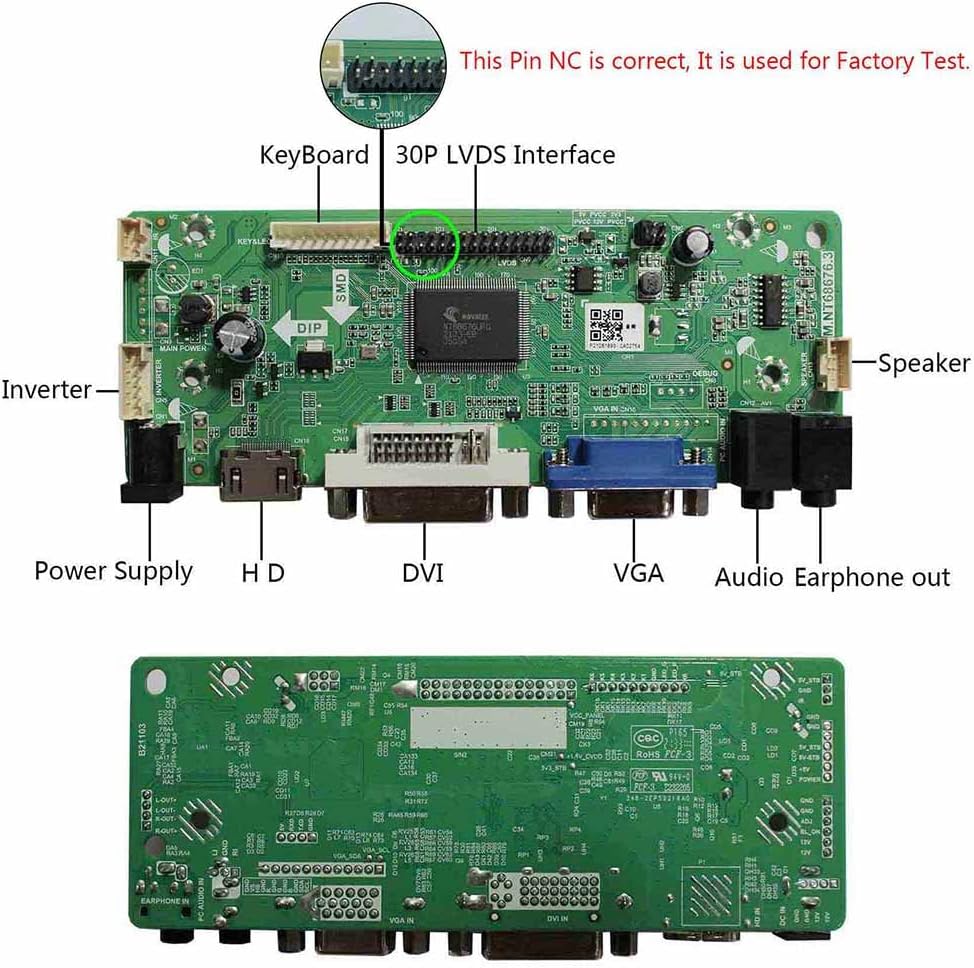

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 3A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: DVI VGAAudio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 125mm x 58mm x 17mm10.4" VS104T-003A 1024X768 LCD Screen:Display Mode IPS, Normally Black, TransmissiveResolution 1024RGB)×768Outline Size 225.8 × 174.3×5.6(H×V×D)mmDisplay Area 211.2× 158.48 (H×V)mmBrightness 500 cd/m² (Typ.)Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pinsBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× VGA DVI LCD Controller Board 686761× 10.4inch VS104T-003A 1024x768 IPS LCD Screen Touch VS104TP-A11× LVDS Cable1× Inveter Board1× Keyboard With Cable

• 10.4inch VS104T-003A 1024X768 IPS LCD Screen With Resistive Touch Panel
• Brightness 500 cd/m² (Typ. Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
• DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
• Recommend use Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W
• Packing list:1× VGA DVI LCD Controller Board 68676;1× 10.4inch VS104T-003A 1024x768 IPS LCD Screen Touch VS104TP-A1;1× LVDS Cable;1× Inveter Board;1× Keyboard With Cable
